Decompiling

From Luma's Workshop
Jump to navigation Jump to search
This page is in progress and may contain incomplete information or editor's notes.

Introduction

Decompiling is the process of taking assembly code and turning it back into a higher level language such as C or C++. It is essentially the reverse of compiling. Matching decompilation is the process of decompiling, but having the compiled code match the original assembly 1:1. While matching decompilation is harder than normal decompiling, it can become easier when you understand the patterns of the compiler used. This page aims to let new people understand how this process works, and hopefully be able to get new people into decompilation! While you do not need to be an expert at C or C++ to decompile, it is recommended that you have some experience before attempting decompilation. It is also very recommended that you have some prior knowledge of PowerPC assembly, as that is the key to understanding how a function works. This document is a good way to learn or refresh knowledge of the PowerPC architecture. This document is also good to learn some of the patterns that CodeWarrior does.

Getting Set Up

To begin decompiling Super Mario Galaxy, you first need to set up the environment. You will need the following tools:

After you have acquired all of these, setting up Petari is very simple.

  1. With a new command prompt open, type in git clone https://github.com/shibbo/Petari. This will clone the repository into a directory called "Petari".
  2. In this new "Petari" folder, place the SMG1 Korean main.dol into this folder, and rename it to baserom.dol.
  3. Open a new command prompt in the "Petari" folder.
  4. Run the command python setup.py. This will verify your DOL and install all of the libraries used, and the compilers we use to compile the code.
  5. Run the command python build.py. This will build the entire project. If you see any warnings, do not worry about them.

Environment

To properly utilize and use Petari, it is necessary to understand the structure of the environment. Petari is structured in a way that makes it easy to access and use.

Folder Name Description
archive The folder that gets created when build.py -link is ran. Contains an archive of the object files in each library.
build The folder that gets created when build.py is ran. Contains the compiled object files.
csv Contains CSV files that store the status of functions being matched.
data Contains map files and the percentage badges for the GitHub repo.
docs The folder that gets created when progress.py is ran. Contains all of the Markdown documentation for matching status.
include Contains all of the header files for Super Mario Galaxy specific code.
libs Contains this folder structure but for different libraries used by the game.
scripts Various scripts used in IDA for generating headers.
source Contains all of the source files for Super Mario Galaxy specific code.

Libraries

Super Mario Galaxy uses a lot of libraries for certain functionality such as heaps, layouts, OS specific code, and more. Each library described in the table below are statically linked to the game, so every library's used code is inside of the main.dol.

Non-SMG Libraries

Name Language Description
JSystem C++ Contains classes for backend things, such as heaps and linked lists.
MetroTRK C Target Resident Kernel, for debugging.
MSL_C C & C++ Contains standard library functions and types.
nw4r C++ Contains classes for sounds, layouts, and more. (SMG only uses the layouts and some math functions)
Runtime C & C++ Contains functions that relate to CodeWarrior's runtime code generation (ctor / dtor lists, etc)
RVL_SDK C Contains functions that relate to the Wii's "OS".
RVLFaceLib C Contains functions that relate to Miis.

SMG Libraries

All of Super Mario Galaxy's libraries are written in C++.

Header text Header text
Animation Library for animation playing.
AreaObj Library for invisible areas that can be accessed by players in the game.
AudioLib N/A
Boss Library for all of the bosses and mini-bosses in the game.
Camera Library for all camera types.
Demo Library for all cutscenes.
Effect Library for all effect rendering.
Enemy Library for all enemies.
GameAudio N/A
Gravity Library for all of the gravity types in the game.
LiveActor Library for LiveActor, which is an actor that can switch states.
Map Library for map classes that do not directly interact with the player. (ie switches)
MapObj Library for all of the map objects in the game.
NameObj Library for the most basic form of an object in the game.
NPC Library for all of the non-playable characters.
NWC24 Library for the mail system in the game.
Player Library for all of the player related functions.
RhythmLib N/A
Ride Library for all of the actors that can be controlled by the player.
Scene Library for all of the game scene related code.
Screen Library for all of the layouts in the game.
Speaker Library for the sound effect playing done on the Wiimote.
System Library for a lot of the game's backend systems.
Util Library for utility functions and classes.

Basics

To properly decompile, it is vital to know how a lot of the assembly will translate into C / C++ code. Here are a couple of patterns that you will see when decompiling code.

Class Mapping

Base Class

The first step to decompiling a class is to map out the class itself. You need to be sure that you document every member, its type (as close as you can guess), its virtual functions, and more. The easiest way to achieve this is to look at the class's constructor. Seen below, is an example of a constructor.

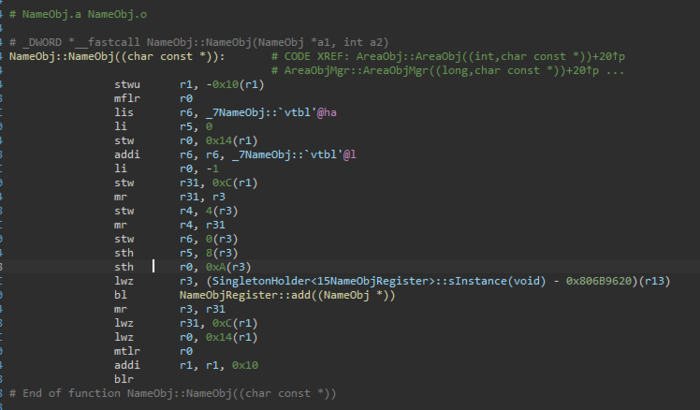

The constructor for NameObj.

There are a couple of takeaways from this screenshot:

  • The constructor passes an argument, which is a const char * (contained in r4) and is stored in (r3 + 0x4).
  • (r3 + 0x0) is where the vtable is usually stored when a class has virtual functions. There are rare execptions.
  • (r3 + 0x8) is stored with a sth, which means that it is a short datatype.
  • (r3 + 0xA) is also stored with a sth, but with a -1 value, so we know for sure that this type is signed.

Keep in mind that a constructor does not have to initialize every single member variable in the class! So there could be other members in a class that aren't mentioned in the constructor at all. After you look at the constructor, look around at the member functions to see if they use any members that are not initialized in the constructor. You can always verify if your class setup is correct when you can find where this class is created using the new operator. Check if the size passed to the new call matches the size of the class that you have mapped. If it is smaller, you are missing members. If it is bigger, you have too many! Remember that the vtable is implicitly stored at (this + 0x0), so you do not have to explicitly define it. With all of these members documented, our class setup looks a little like this so far:

class NameObj {
public:
    NameObj(const char *pName);

    /* remember that the vtable will be placed here once we define our virtuals! */
    /* 0x4 */   const char* mName;
    /* 0x8 */   volatile u16 mFlags;
    /* 0xA */   s16 mExecutorIdx;
};

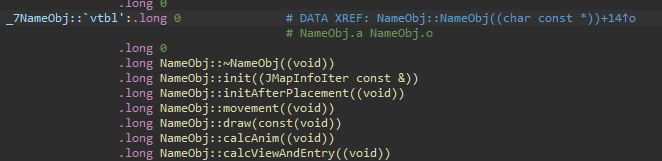

After the members comes the vtable, or virtual table. It is an array of function pointers that can be overridden by classes that inherit the parent class. The vtable for NameObj looks like this: The vtable for NameObj.

To document the vtable, you simply document every single function placed here that contains the class name of the class you are currently decompiling. Since NameObj is a base class, every single function here is going to be defined. If a class overrides a function, you will only document the functions that are overridden. After documenting the vtable, our class looks something like this:

class NameObj {
public:
    NameObj(const char *pName);

    virtual ~NameObj();
    virtual void init(const JMapInfoIter &rIter);
    virtual void initAfterPlacement();
    virtual void movement();
    virtual void draw() const;
    virtual void calcAnim();
    virtual void calcViewAndEntry();

    /* remember that the vtable will be placed here once we define our virtuals! */
    /* 0x4 */   const char* mName;
    /* 0x8 */   volatile u16 mFlags;
    /* 0xA */   s16 mExecutorIdx;
};

Once the vtable is complete, you want to document all of the member functions that are in the class. Since Super Mario Galaxy 1 has a symbol map, we can easily find the member functions that NameObj contains. Once you have figured out their return types and their arguments, you can finish mapping out a class! After finding all of NameObj's member functions, the class looks like this:

class NameObj {
public:
    NameObj(const char *pName);

    virtual ~NameObj();
    virtual void init(const JMapInfoIter &rIter);
    virtual void initAfterPlacement();
    virtual void movement();
    virtual void draw() const;
    virtual void calcAnim();
    virtual void calcViewAndEntry();

    void initWithoutIter();
    void setName(const char *pName);
    void executeMovement();
    void requestSuspend();
    void requestResume();
    void syncWithFlags();

    /* remember that the vtable will be placed here once we define our virtuals! */
    /* 0x4 */   const char* mName;
    /* 0x8 */   volatile u16 mFlags;
    /* 0xA */   s16 mExecutorIdx;
};

Inheriting Class

The process of mapping a class that inherits another class is mainly the same as mapping a base class, except there are things to watch out for so you don't accidentally duplicate a member variable. The first step is to look at the constructor of the class you want to map:

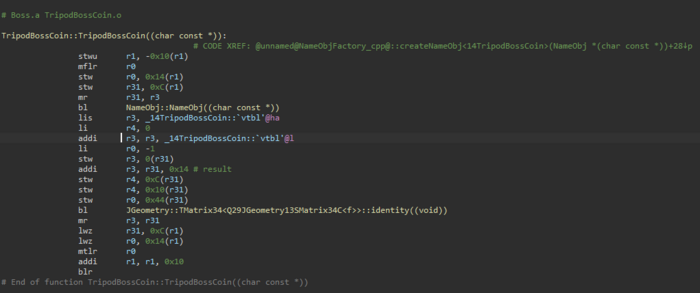

The constructor for TripodBossCoin.

There are a few takeaways from this by looking at the constructor:

  • The class inherits NameObj. Since NameObj is 0xC bytes long, we know that any member variables for TripodBossCoin start at 0xC.
  • The vtable pointer (this + 0x0) from NameObj is overridden with the vtable for TripodBossCoin implicitly.
  • (this + 0xC) is a 32-bit integer initialized to 0. It is not possible to determine if it is signed or not from this store alone.
  • (this + 0x10) is the same scenario as (this + 0xC).
  • There is a direct instance of JGeometry::TMatrix34<JGeometry::SMatrix34C<f32> at 0x14. (in Petari & Syati this is typedef'd as TMtx34f). Since TMtx34f is 0x30 in size, the next member variable is at 0x14 + 0x30, which is 0x44.
  • (this + 0x44) is a signed 32-bit integer, due to -1 being stored to it.

After these observations, our class looks like this:

class TripodBossCoin : public NameObj {
public:
	TripodBossCoin(const char *);

	u32 _C;
	u32 _10;
	TMtx34f _14;
	s32 _44;
};

Next are the virtuals. The process is a little different from a base class. Let's take a look at the vtable for TripodBossCoin:

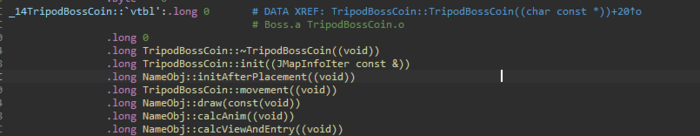

The vtable for TripodBossCoin.

The biggest takeaway from this screenshot is that only three virtuals are overriden by TripodBossCoin. And those three functions are TripodBossCoin::~TripodBossCoin(), TripodBossCoin::init() and TripodBossCoin::movement(). So we define them as such:

class TripodBossCoin : public NameObj {
public:
	TripodBossCoin(const char *);

    virtual ~TripodBossCoin();
    virtual void init(const JMapInfoIter &);
    virtual void movement();

	u32 _C;
	u32 _10;
	TMtx34f _14;
	s32 _44;
};

It is worth noting that the override keyword was not a part of the C++ standard at this point in time, so all overrides are implicit. After all of this is done, you simply have to repeat the process for base classes and document the member functions that are a part of the class.

Loops

Predefined bounds

Let's take a simple loop that stores nullptr in each 8 elements of a pointer array.

class TestClass {
public:
    TestClass();

     int* mPointers[8];
};

TestClass::TestClass() {
    for (int i = 0; i < 8; i++) {
        mPointers[i] = nullptr;
    }
}

The output assembly would look something like:

li r0, 8 # there are 8 elements in this loop
li r5, 0 # the value to store in the element (nullptr)
li r4, 0 # the current element offset in the loop
mtctr r0 # move the number of iterations into the counter register (8)

loop:
    stwx r5, r3, r4 # store 0 (r5) into the array at r3 (this) + r4 (our current offset, which is i * 4)
    addi r4, r4, 4 # increment our offset by sizeof(int) since integers are 32-bits
    bdnz+ loop # branch back to our loop again

Variable Length Bounds

Let's take a simple loop that stores nullptr in each element of a variable-length array. We will have a class with two members, one that contains the pointer array itself, and another that stores the number of pointers.

class TestClass {
public:
    TestClass();

     int** mPointers;
     int mNumPointers;
};

TestClass::TestClass() {
    mNumPointers = 8;
    for (int i = 0; i < mNumPointers ; i++) {
        mPointers[i] = nullptr;
    }
}

Because we do not know how many pointers we have stored, we cannot use the counter register like we did with a fixed-size array. Instead, the compiler will use a cmpw (signed integer) or cmplw (unsigned) instruction to compare the current iteration to how many pointers are stored in the class.

li r0, 8 # there are 8 elements in this loop
li r7, 0 # the value to store in the element (nullptr)
stw r0, 4(r3) # r3 + 4 is the offset to our member variable "mNumPointers"
mr r6, r7 # simple copy of the 0 value so we can also use it for our counter
li r4, 0 # load 0 into our offset
b loop # branch into our loop

loop:
    lwz r5, 0(r3) # load our pointer array from this + 0
    addi r7, r7, 1 # increment our index by 1
    stwx r6, r5, r4 # store our nullptr value (r6) into r5 + r4 (ptrArray + currentOffset)
    addi r4, r4, 4 # increment our offset by sizeof(int) since integers are 32-bits
    lwz r0, 4(r3) # load our number of pointers we will increment by (mNumPointers)
    cmpw r7, r0 # compare our number of pointers to the current index in our loop
    blt+ loop # branch if the number is less than mNumPointers

Structure Access In Arrays (Pointer Array)

More complex forms of loops comes into play when you are iterating through structures and storing / loading members from those structures. Let's take this class for example:

struct TestStruct {
    int SomeMember;
    int AnotherMember;
};

class TestClass {
public:
    TestClass();

    void storeVals();

     TestStruct** mStructures;
     int mNumStructures;
};

For the sake of simplicity, let's assume that the TestClass constructor initializes the number of structures to 8, and constructs them accordingly. With that in mind, let's see how a struct store will work.

void TestClass::storeVals() {
    for (int i = 0; i < mNumStructures; i++) {
        mStructures[i]->AnotherMember = 5;
    }
}

The output assembly would look something like:

li r7, 0 # our "i" used in the loop, starts at 0
li r4, 0 # our current offset into the array
li r6, 5 # the value we are storing into the array
b loop

loop:
    lwz r5, 0(r3) # load the array pointer
    addi r7, r7, 1 # increment our current index (i) by 1
    lwzx r5, r5, r4 # load the current structure, mStructures[i] where r4 is the current offset
    addi r4, r4, 4 # increment our offset by sizeof(TestStruct*), which is 4
    stw r6, 4(r5) # store our value (5) into (mStructures[i] + 4), which is our AnotherMember
    lwz r0, 4(r3) # load the number of structures from TestClass
    cmpw r7, r0 # compare the current index to our value in TestClass
    blt+ loop # loop back if it is less than the value

Structure Access In Arrays (Direct Array)

Let's take the previous example and modify it a little. Instead of making an array of pointers to the struct instances, let's store the array directly into our class instance.

struct TestStruct {
    int SomeMember;
    int AnotherMember;
};

class TestClass {
public:
    TestClass();

    void storeVals();

     TestStruct mStructures[8];
};

Again, let us assume that the array has already been constructed and everything is initialized as it should be.

void TestClass::storeVals() {
    for (int i = 0; i < 8; i++) {
        mStructures[i].AnotherMember = 5;
    }
}

The output assembly would look something like:

li r0, 8 # load our number of iterations (8)
li r4, 0 # current offset into the array. initialized at 0
li r6, 5 # the value to store into the array
mtctr r0 # move the number of iterations into the counter register

loop:
    add r5, r3, r4 # jump to the offset into the array. r5 = (this + 0) + r4
    addi r4, r4, 8 # increment our current offset by sizeof(TestStruct), which is 8
    stw r6, 4(r5) # store our constant value (5) into the loaded struct + 4 (AnotherMember)
    bdnz+ loop # branch back to the loop if the counter is not 8
